Model
|

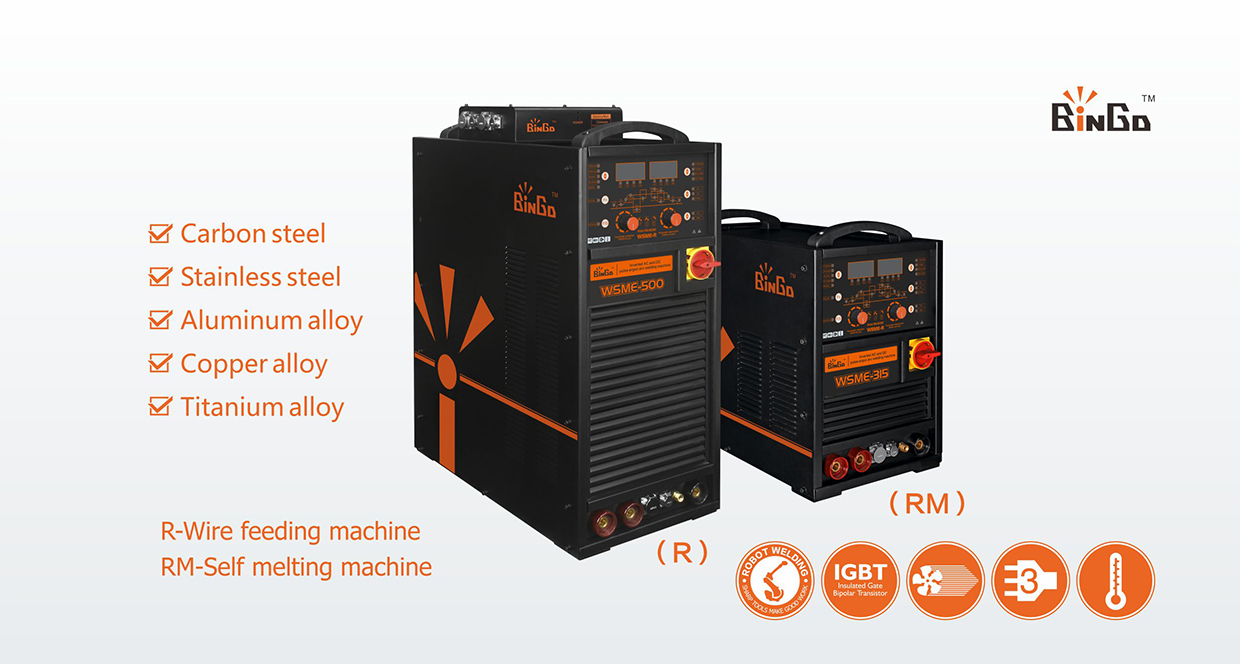

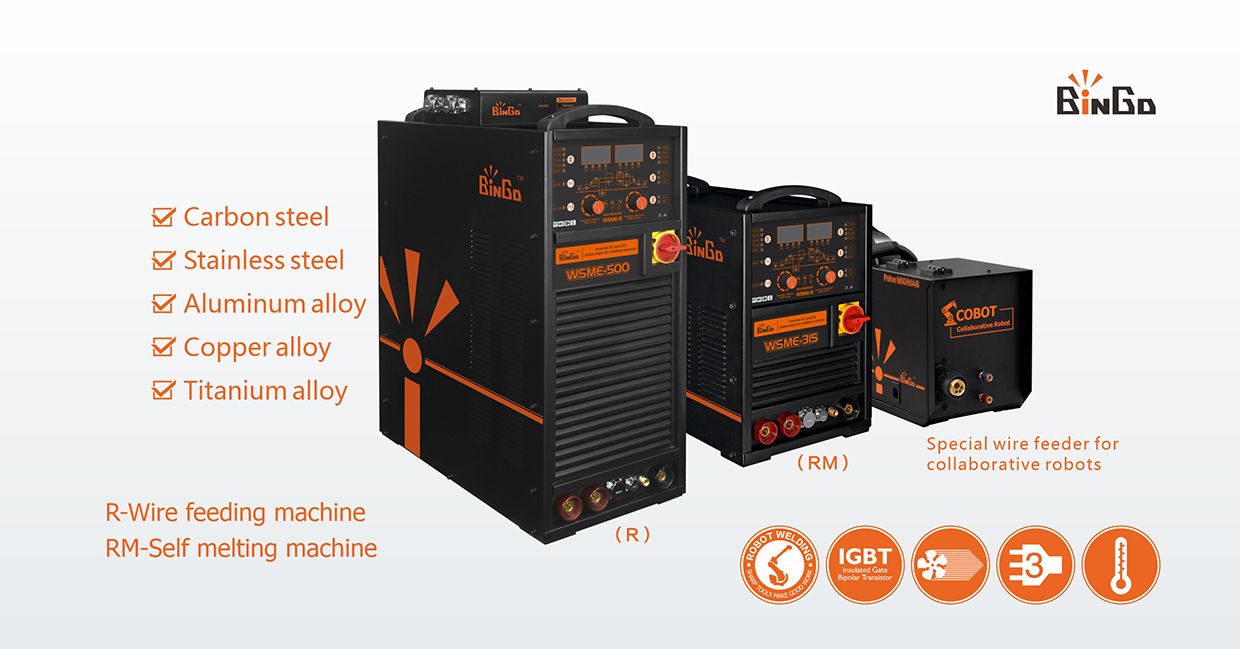

WSME-315R/RM
|
WSME-500R/RM
|
Rated input voltage / frequency
|
Three- phase380V(+ / -)10% 50Hz
|
Rated input capacity(KVA)
|
12.1
|
25.7
|
Rated input current(A)
|
18.5
|
32
|
Rated load sustainability(%)
|
60
|
60
|
Output noHoad voltage(V)
|
63
|
79
|
Output current range(A)
|
5~315
|
10~500
|
Arc starting current(A)
|
10~315
|
10~500
|
Peak current(A)
|
5~315
|
10~500
|
Arc stopping current(A)
|
5~315
|
10~500
|
Time of current increasing(S)
|
0.1~10
|
Time of current decreasing(S)
|
0.1-15
|
Pre flow time(S)
|
0.1-15
|
Lagging time of gas stopping(S)
|
0.1~20
|
Pulse frequency(Hz)
|
AC0.2~250 / DC0.2~1000
|
Pulse duty(%)
|
1~100%
|
AC frequency(Hz)
|
20~250
|
Adjustment of cleaning area(%)
|
-40~40
|
TIG pilot arc style
|
HF arc
|
Cooling mode
|
Water cooling
|
Shell protection grade
|
IP21S
|
Insulation grade
|
H/B
|
